    Fixing the Weak Link - Getrag 6-Speed Swap for MINI Cooper

    by Scott Bibbee
    Photos by the Author

    (article and photos Copyright © 2008 - Texas Speedwerks)​

    Some things just have weak links – solid axles with c-clips, any car with Lucas electrics, and the MINI Cooper’s Midlands transmission. Marginally acceptable for street use, the Midlands 5-speed gearbox simply cannot stand up to track and autocross punishment like the Cooper S Getrag 6-speed. With any motorsports use or with any power modifications, the Midlands gearbox is a ticking time bomb.

    My MINI Cooper track car has eaten two of them now, the second of which featured upgraded synchros, welded reinforcements and extra dowelling. On the first Midlands, the dogs on the first and second gears rounded off and made for a crunchy engagement when shifting between the gears. The clincher was that the car would spontaneously pop out of second gear in fast sweepers – a big problem for a car setup to be neutral, where throttle steering is impossible mid-corner if there’s no driveline engagement. After a couple close calls, I sourced a new gearbox.

    The second Midlands grenaded in spectacular fashion. It began as a slightly odd popping noise from time to time. One morning on the way to the office, there was a big *BAAAANG* followed by subsequent smaller, cyclical banging sounds. The car bucked like crazy in first gear, so I shifted to second. First gear became completely useless. The pitch of the transmission changed, too. I was used to the old sound. The new sound was, well, different. It sounded like someone slipped some aggregate of some kind into the transmission, adding a touch of sand and a couple of BB's for aural sickness. Imagine a concrete mixer, with a much more metallic tinge. Analysis of the failure revealed that there were few undamaged teeth on the first gear – the mesh gear was missing two teeth, too, hence the cyclical banging sound.

    [​IMG]

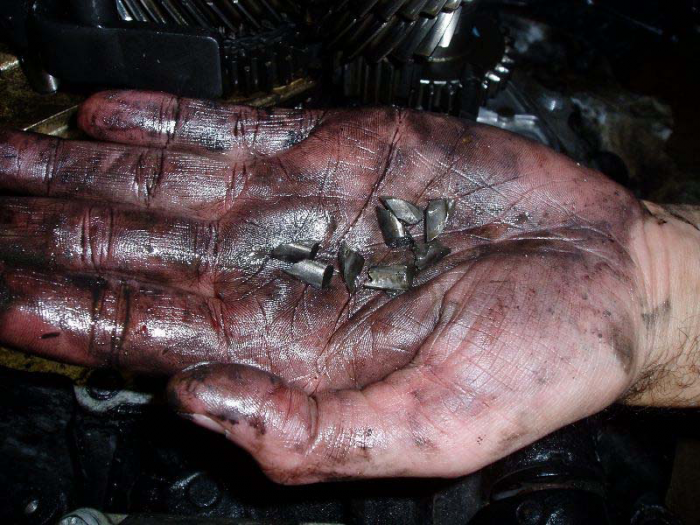

    Figure 1 - Generally, this is not what you want to find inside your transmission.

    There was simply no way to justify installing another Midlands transmission. The only logical solution was to borrow the transmission setup from the Cooper S and figure out how to make it work in the Cooper. After all, the Getrag 6-speed in the Cooper S is routinely being pushed well over 200 horsepower at the wheels. Professional race teams are running them with nary a failure.

    The Search Begins for Parts
    So, off to the web to do as much research as possible, locate a Getrag 6-speed, and see if it had been done before. I stumbled on a few posts on mini2.com from a tuner in the UK that had seemingly done a few such swaps. After a couple of exchanges via email, I had an initial parts list.

    A parts list for a MINI project is a good start. The problem, though, is getting the right part numbers for the parts that you need. Realoem.com is a good source for information, but the drawings and numbers listed there can be somewhat confusing – the BMW T.I.S. is not a whole lot better, either.

    First things first, though. Before going any further, I had to locate a Getrag 6-speed. I found one online at a salvage yard in Utah that was brand new, a dealer takeoff for someone that wanted the factory limited slip differential. Problem was that when it arrived, it was actually a 2007 Cooper S transmission, made to mate up with the Peugeotsourced 1.8L turbo motor. This brings up a good point – sourcing used parts on the internet can be tricky. While I was ensured this was a Getrag 6-speed for a 2006 Cooper, I should have asked for a part number and some pictures before having it shipped in. That transmission went back to the sender.

    On a whim, I emailed Tony Nuzzo of Nuzzo Motorsports to enquire about a used Quaife differential. Tony used to field a team of two MINI Cooper S cars in Grand Am ST class, and I had seen posts from him before with all sorts of parts he was selling off. Tony did not have a Quaife – but, he did have a brand new transmission! He informed me that it rode around on the race team trailer and was never touched – a testament to the reliability of the Getrag 6-speed.

    As luck would have it, not only did Tony have a brand new transmission, but it was the later model Getrag 6-Speed. Cooper S models with build dates of July 2004 and later got a revised Getrag box with slightly lower gearing. Not only did it make the S a bit quicker, the gear ratios in the later box are a much better match for the Cooper. There is some confusion around part numbers, original versus replacement and amongst year models, but the one you want has a BKE in it. Earlier Getrag transmissions have a BKA designator on them. You’ll find an identification sticker on the driver’s side of the transmission, or you’ll find it cast in the end plate.

    [​IMG]

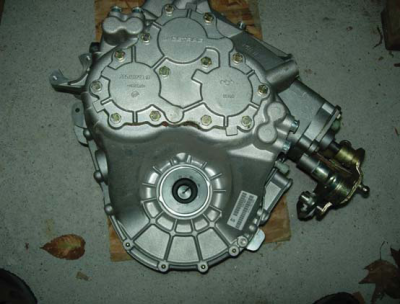

    Figure 2 - Getrag 6-speed. Note the location of the part number sticker for reference.
    This is a brand new, never been used beauty!

    With the transmission secured, I went about gathering the rest of the parts required for the swap – a Cooper S flywheel, pressure plate and clutch, release bearing, starter, output shafts, slave cylinder, clutch line, transmission mount, shift cable tower and various assorted hardware. For the flywheel, clutch and pressure plate, I ended up choosing the Exedy Hyper Single setup. And, since I did not want to pull the transmission ever, ever again and wondered if I would be sorry if I did not install the Quaife LSD, I went ahead and ordered one.

    One major point of confusion centered around the shift lug and shift cables – I ended up with two complete sets of MINI’s different styles and really did not need either. One other point of concern was whether or not the aFe intake would work when we got the car back together – we were told the battery box would be fine in the OEM location, but that was also a bit suspect.

    Tranny Comparo

    Thanks to 101101 on North American Motoring, below are a series of charts showing the differences between the gear ratios of the Midlands and the early and later 6-speed Getrag – it’s fairly obvious that the late model Getrag 6 is the one to find.

    [​IMG]

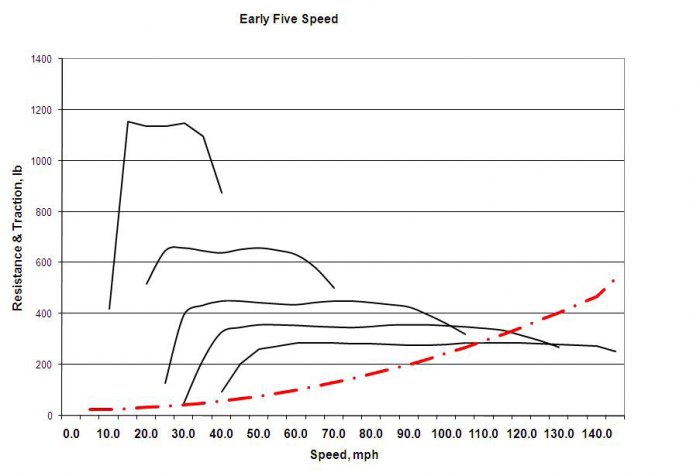

    Figure 3 - Midlands gear ratios
    [​IMG]

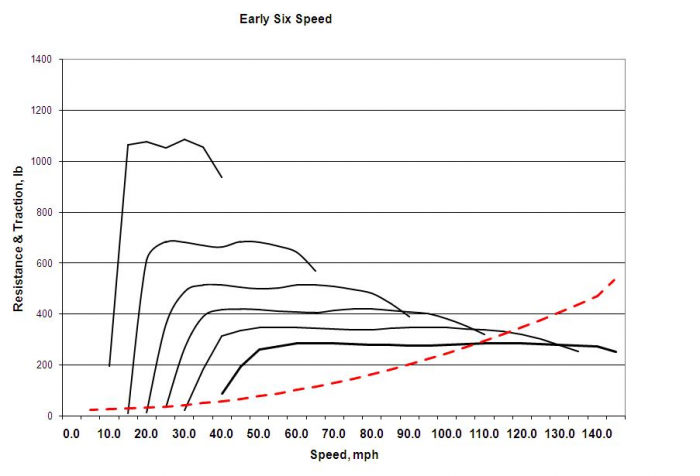

    Figure 4 - Early Getrag 6-Speed ratios
    [​IMG]

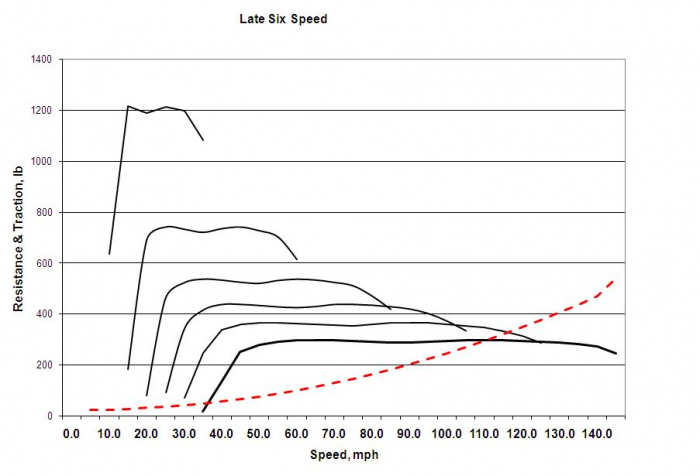

    Figure 5 - Late Getrag 6-speed ratios, where 1st and 2nd are closer to the original Midlands ratios.
    As mentioned later on, 3rd and 4th gear are quite pleasing!
    Rounding ‘Em Up
    With a list of parts in hand, it was off to track down the right numbers and get the parts on order. A solid MINI parts department helps out a whole lot when trying to track down the right bits and pieces – don’t expect them to know how to help you out with everything since this is a very unique project, but they will be able to help get you the right stuff.

    Before ordering parts, I checked the transmission over well to see what I needed. I suggest that you do the same, since you may already have some of the parts listed below or you may need more parts. Specifically, look for the backup light switch and the Bowden cable bracket (23-11-7-509-737). You should also inspect all seals and the shift selector levers. If the transmission is used, you should look for any leaks, missing ears, cracks, etc. as well.

    Transmission Swap OEM Parts List
    Part Number Description
    31-60-7-514-480 Output Shaft – Right (Passenger side)
    31-60-7-514-479 Output Shaft – Left (Driver side)
    31-60-7-518-257 Dustcover (qty. 2)
    31-60-7-518-262 Dustcover
    31-60-7-518-264 Lock Ring
    31-10-6-773-005 Hex Nut (for output shafts)
    12-41-1-517-328 Starter
    21-51-7-547-077 Clutch Release Bearing
    21-51-6-777-428 Output Cylinder Clutch (slave cylinder)
    21-52-6-759-854 Pipe (connects clutch line to slave)
    21-52-6-759-855 Pipe Bracket
    22-31-6-754-422 Support Bracket, Transmission
    22-11-6-756-599 M12 x 45 bolts for support bracket
    23-11-7-509-737 Bracket, Bowden cable
    23-11-7-527-716 Backup Light Switch


    I ordered the dustcovers and lock ring when I was rounding up my parts, and I am certainly glad that I had them. The output shafts are remanufactured parts and you are supposed to get them complete, with all the dustcovers and lock ring in place – my set was missing one of the dustcovers, so I slapped it on the output shaft. I just kept the others as spare parts.

    In addition to the parts listed above, you will need to choose a flywheel, pressure plate and clutch of your choice. If you choose to install a Quaife LSD during the process, you will need to source two new differential bearings, part number LM501349 (Napa is a good source). Because you have to split the transmission case to install the Quaife, you will also need anaerobic sealant when rejoining the halves. If you simply cannot find anaerobic sealant, look for a product called ‘The Right Stuff’ from Permatex – while it is not the ‘recommended’ sealant, it works just fine.

    For re-assembly of the car, you will need MINI/BMW coolant, distilled water, transmission fluid and brake fluid of your choice. If you plan on swapping your shift cables, you’ll need to drop the exhaust system to access the bottom of the shift lug so you should replace the exhaust donut gasket and the copper nuts on the exhaust bolts.

    The Cooper S output shafts have more splines on the transmission side than the Cooper output shafts, which is why they have to be replaced during the swap. The bonus of replacing the output shafts is that you get brand new CV joints!

    [​IMG]

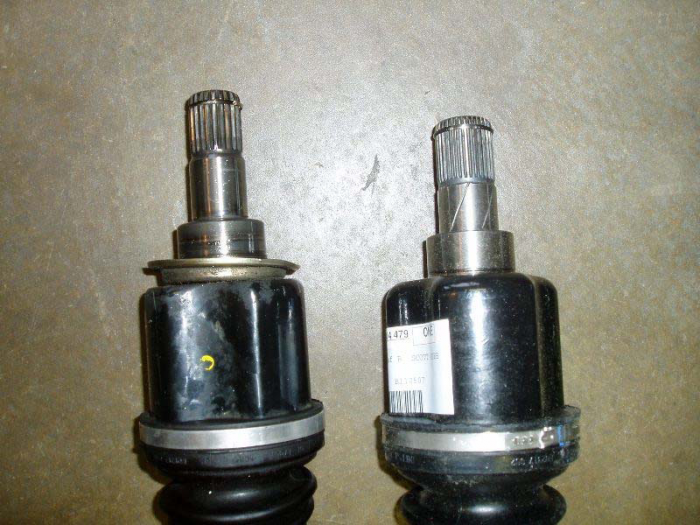

    Figure 6 - Tranny side of the driver’s side output shafts - Cooper on the left, Cooper S on the right.
    Note the relief oiling in the Cooper S output shaft and more splines.
    Also note the missing dustcover - glad I ordered those!


    [​IMG]

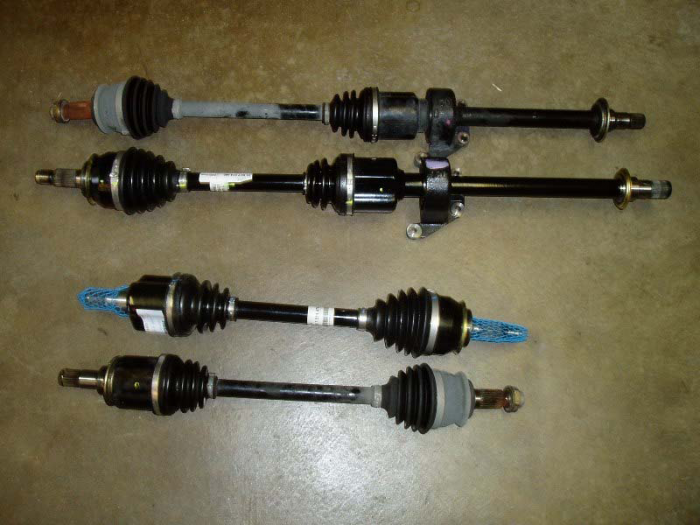

    Figure 7 - Comparison of output shafts.
    The new shafts are obviously the clean ones - note that the passenger output shaft from the Cooper S has a longer prop shaft.


    As far as the shift lug and cables are concerned, I think it’s better to match the shift lug and cables to your car’s build date than it is to match it up to the build date of the transmission. If your shifter is a bit tired or sloppy, this is a good time to replace the cables – but, you can retain your original shift lug. Likewise, it is good to have them on hand in case you damage the cable ends during disassembly.

    The key is matching the cables to the shift lug, which as I suggested is matched to your car’s build date. As far as we could tell, the cables look identical in length between year models and the ends are the same – some of the hardware has changed among the different part numbers, but it appears that they are all interchangeable. Still, I think that the safest course of action is to source new cables and clips (shift lug side and shift cable tower side) that match your shift lug. Don’t forget a 6-speed shift knob, unless you revel in confusing anyone else that might have to drive your car.

    BMW loves special tools – you can usually find a workaround if you have a large assortment of tools, but there are some that really do make life easier for this job and a couple of really cheap ones that will save you from a whole lot of pain. Special tool 23 4 010 makes getting the shift cables off the ball joints a cinch. The transmission output flange seal protectors, special tool 24 8 120, will keep you from nicking the seals when you install the output shafts – nothing is worse than filling up your new transmission and watching it leave the transmission via a nicked seal (trust me on this one). Clutch alignment tool 21 2 210 makes centering up the clutch easy – you may be able to borrow this tool from your local dealer. Special tool 21 5 030 makes bleeding the new slave cylinder a snap, or you can make one quite easily with some bar stock, long bolts, washers and wing nuts.

    BMW Special Tools
    23 4 010
    24 8 120
    21 2 210
    21 5 030
    Other than that, I would recommend that you have access to the following tools:
    • Full metric wrench set
    • ½”, 3/8”, ¼” ratchets and metric sockets
    • Air tools
    • Screwdrivers
    • Torque wrenches
    • Pickle fork
    • Rubber hammer
    • Jack and jack stands
    • Dikes and assorted pliers
    • Wire strippers
    • Soldering iron
    • Bentley Service Manual
    It is very handy to have the Bentley Service Manual on hand in case you get stuck at some point, and this article is not a substitute for the detail in the manual – every DIY’er should have this on hand, if for nothing other than to have a source for looking up torque specifications. Double-check all torque specs referenced here, as they may have changed between model years.

    Let the Fun Begin
    Obviously, the first step is pulling the transmission from the car – on the MINI, this is no small feat, since you pretty much have to disassemble the entire front end to get at your target. Make sure you have a bunch of Ziploc bags handy and a permanent marker – bagging each assembly’s hardware as you tear down makes it a WHOLE lot easier to put it back together right. Nobody likes seeing extra hardware laying around when they’re done and then trying to remember where it goes.

    First things first – get the car up on 4 jack stands and make sure that it is extremely stable. You’ll be spending a lot of time in, around, and under the car, so making sure that it’s completely stable and secure is extremely important. I like to try and get it as high as possible. Once airborne, remove the front wheels.

    I started on the top end, pulling aFe intake and hardware first, followed by the battery, battery box and ECU. This exposed the top end of the transmission and opens things up a bit for future steps. Then, I dropped the rear section of the exhaust, removing the bolts from the flange near the catalytic converter, followed by the rear exhaust hangers, and then the center plate that houses the center hangers. This is best done with two people!

    [​IMG]

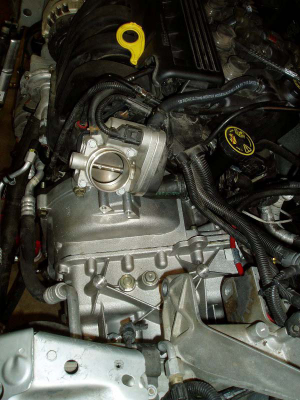

    Figure 8 - Battery Box and aFe intake removed.

    The next step is to remove the under tray. Then, remove the driver’s side fender liner, taking out those little plastic body bolts and bagging them up – you may find that a few break and may need replaced. Remove the bumper cover – there are two Torx head bolts and some plastic clips at the top of the bumper cover. Be careful when removing the bumper cover, unplugging all connectors and then marking them with masking tape so you get them plugged back in right.

    [​IMG]

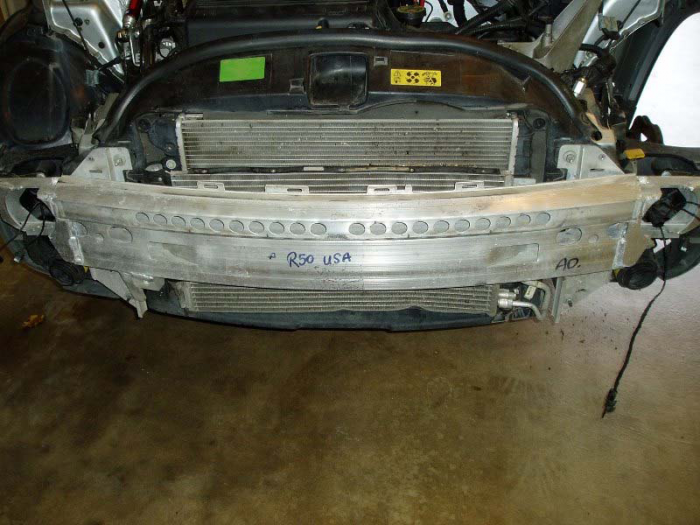

    Figure 9 - Oooh, nekkid! Front bumper cover removed.
    And yes, the A/C condenser took some cone damage in the past.


    Follow this by pulling all the bolts from the large, aluminum main bumper beam. Remove the beam and set it aside. Finally, remove the horns that bolt into the front subframe – these are part of the modular front end, and there are two bolts per side. I like to thread those bolts back into their capture nuts.

    [​IMG]

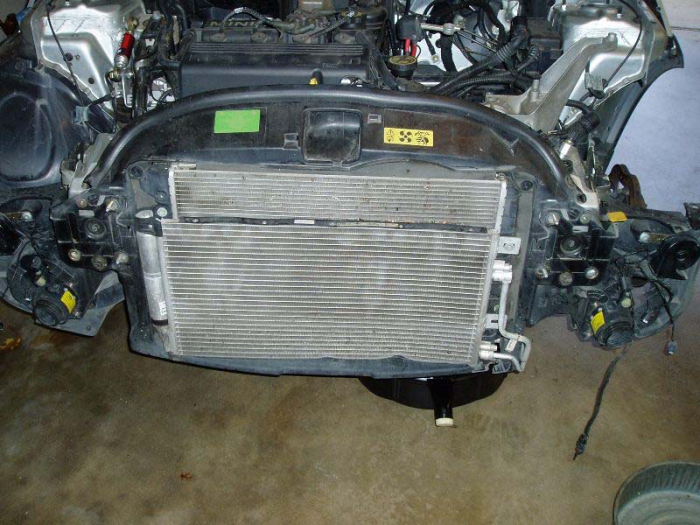

    Figure 10 - Aluminum beam removed.

    Place a large pan under the driver’s side where the lower radiator hose comes in – loosen the clamp, slide it back, and pull the hose. I’ll almost guarantee that it’s going to go everywhere, so be prepared to mop up a bit. Once it has stopped flowing quite as fast, remove the cooling system fill cap. If you squeeze the upper radiator hose after the elbow (near the inlet side, to the left of the intake manifold), you can extract quite a bit more by pumping it out. If you have pets, be extremely careful with the coolant once it’s finished draining and make sure there’s no extra fluid on the ground.

    Once good and drained, slide the lower radiator hose up and out of the way. Unplug the fan wiring from the harness located on the upper right corner of the radiator, and remove the 10mm bolt that holds the bracket and A/C service port in place. Unplug the connector from the horns and label the connectors. Remove the two bolts that hold the A/C condenser to the radiator core support, and be ready to thread it out of the way. Slowly slide the radiator and radiator core support structure off the front of the car, being careful to avoid hitting the A/C condenser. It’s definitely easier with two people. Once the radiator core support is clear, you can hang the A/C condenser back on the front of the car using one of the protruding studs used to secure the core support. Immediately take the radiator core support outside and drain the rest of the coolant by slowly rocking it back and forth. If you wish, you can flush it with water to ensure all the coolant is gone.

    [​IMG]

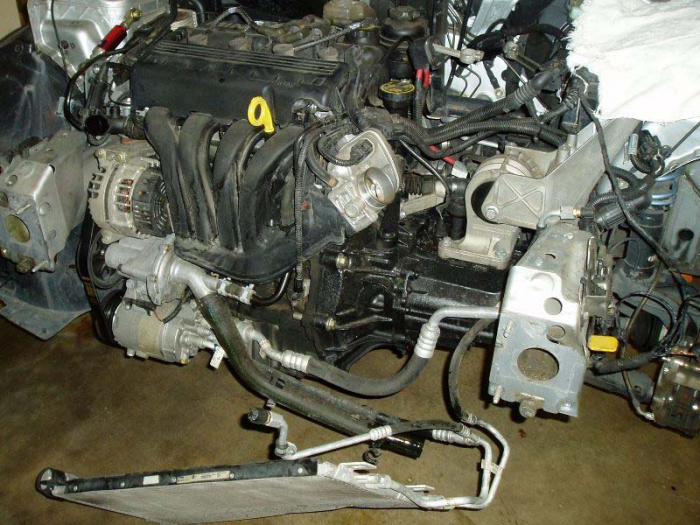

    Figure 11 - Radiator core support and radiator removed.

    Now, it’s time to drop the front subframe. Begin by disconnecting the lower end of the front swaybar links on each side, making sure that they are well out of the way. Unclip the ABS sensors from the front subframe horns and move aside. Remove the two 13mm bolts that hold the lower a-arm balljoint housing into the hub carrier on each side, and persuade them to break free from the hub carrier using a rubber hammer. Remove the nut from the steering tie-rod balljoint and use a pickle fork gently to remove them from the hub carrier – sometimes they just fall out, but sometimes they need a bit of persuasion! In the engine compartment, remove the pinch bolt holding the power steering reservoir to the bulkhead, as well as the bolts for the bracket. Slide the reservoir out of the bracket and remove the bracket from the engine compartment. Under the car, reach up and disconnect the power steering pump electric connections (there are two) and the power steering fan connection. Remove the bolt that connects the steering shaft to the rack and pinion, slide the connection back, and bag the bolt. NOW, support the center of the lower subframe with a jack and secure the subframe to the jack – a transmission jack works particularly well. Remove the bolts from the lower engine vibration damper. Remove the control arm bushing bracket bolts (aka the ‘lollipops’). Remove the 6 bolts at the rear of the subframe. Finally, remove the two front bolts that bolt into the unibody at the front of the subframe. Have someone guide the power steering reservoir down between the bulkhead and the engine as you lower the jack. Roll the front subframe from under the car and move it out of the way – to avoid spilling power steering fluid, use a stick and some duct tape to hold the reservoir upright.

    [​IMG]

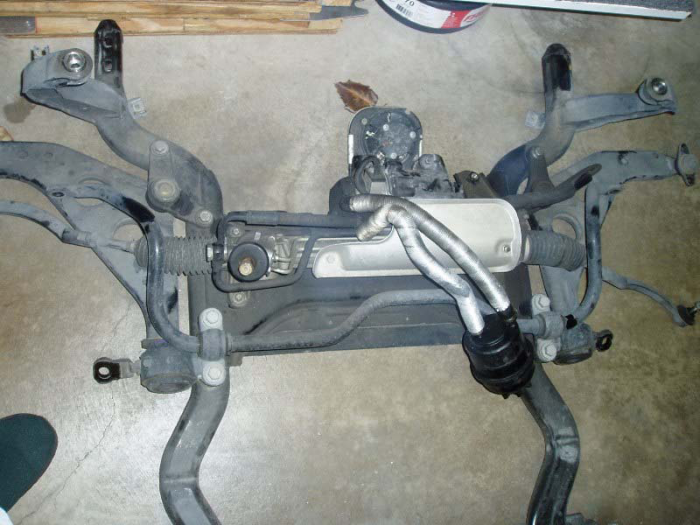

    Figure 12 - Subframe removed and out of the way.
    Note this is before we rigged the power steering reservoir to remain upright using a stick and some duct tape.


    Remove the exhaust heat shield from above the header. Drain the transmission. Remove the 3 bolts from the jackshaft bearing support on the passenger side, and remove the output shaft retainer clip from the passenger side of the transmission (look where the output shaft goes into the differential). Slide the passenger output shaft (axle) out of the differential. Using an impact wrench and 32mm socket, remove the axle flange nut on the outboard side of the hub and tap the splined end out of the hub. On the driver’s side, pull firmly to remove the output shaft from the differential and repeat the process of removing the axle flange nut. You may need to pry between the gearbox housing and CV joint to release the lock ring from the differential. Set the output shafts aside.

    Remove the starter heat shield from the starter, remove the electrical connections and then remove the starter itself from the upper side of the transmission. Keep all hardware as you’ll need to re-use it. Unclip the shift cables from the shift mechanism, using BMW special tool 23 4 010 – the other method, sans the special tool, is to use two screwdrivers to pry them off (this is not easy, nor ideal, and it’s very easy to damage the ends without the special tool). Unclip the backup light switch connector. Remove the two mounting bolts from the slave cylinder and bag them – you will need to re-use these 8x30mm bolts for the Getrag’s slave cylinder. Remove the slave cylinder from its bracket. If your brake booster vacuum line is tied to your transmission, you’ll need to remove any clips securing it to the transmission, and to possibly pull the line from the intake manifold.

    [​IMG]

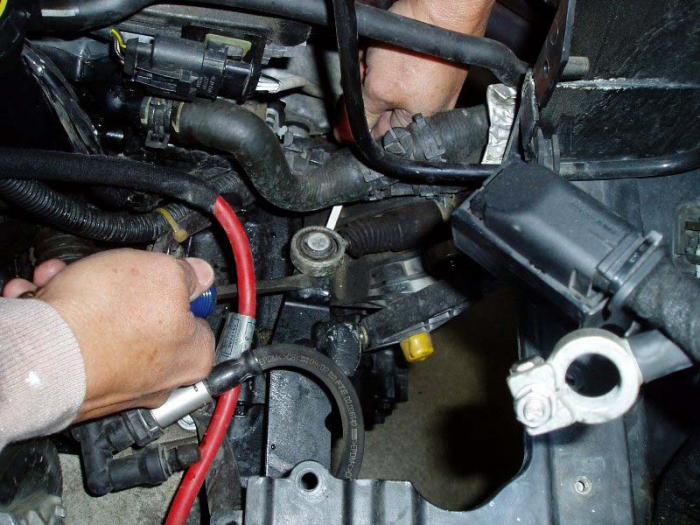

    Figure 13 - Prying off the shift cable ends - the BMW special tool makes this a LOT easier and you're less likely to damage the cable ends.

    Support the engine with a jack and get ready for some heavy lifting! If you do not want to manipulate and remove the transmission by hand, place another jack under the transmission. Remove the single bolt going through the transmission mount and the 4 bolts securing the transmission mount to the transmission. Lower the jack under the motor slightly (and the one under the transmission, if you’re using one) and remove the transmission mount. Keep the long bolt for re-use. Remove all the bolts securing the transmission to the motor.

    [​IMG]

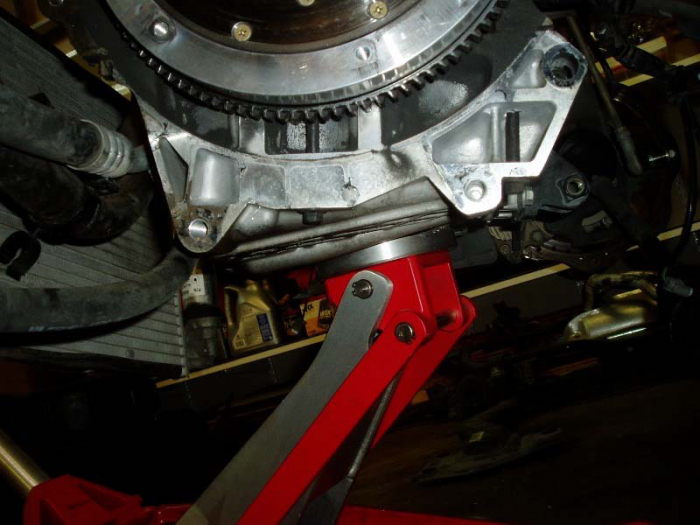

    Figure 14 - Jack supporting the motor.

    Rock the transmission back and forth by hand to release it from the dowels and extract the transmission’s input shaft from the clutch disc. In some cases, you may need to use a small prybar (carefully!) to release the transmission from the motor. Once free, lower it down and out of the way.

    Remove the pressure plate from the flywheel using a cross pattern, being careful to catch the clutch disc as you remove the pressure plate. You will need a Torx female socket to do this – we didn’t have one the first time we did this, which necessitated a trip to the local auto parts store to get one. Using an impact wrench and socket, remove the bolts holding the flywheel to the crank using a cross pattern. Wallah! You’re halfway there!

    [​IMG]

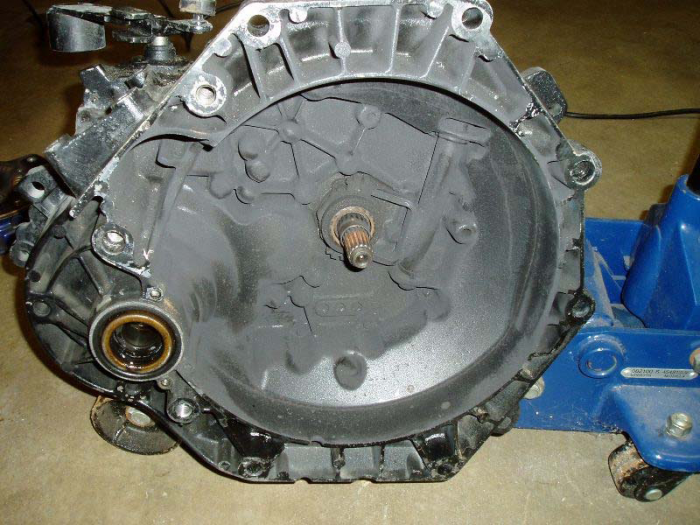

    Figure 15 - Anyone order another dead Midlands transmission?

    LSD Install (optional)
    If you plan to install a Quaife (or other LSD) during the swap, keep in mind that it is a good idea to let the transmission sit overnight after re-joining the two halves of the housing together.

    The first step is to arrange the gearbox on something soft, with the bell housing pointed skyward so that you can get to all the bolts. Then, remove all the bolts securing the two halves of the housing. Gently, VERY gently start to work the two halves apart. Do NOT use anything sharp to force the halves apart, else you risk gouging the mating surfaces that you’ll have to use to form a gasket later.

    Marvel at the inside of the gearbox – so very simple in comparison to the guts of the Midlands gearbox. And, trust me here on this one – if you get the wild idea to split your Midlands box just to poke around, make sure the kids aren’t around to hear the strings of expletives that will emanate from the garage. There will be many and they will likely be quite offensive.

    Slip the open diff out of its home and proceed to zap the ring gear off of the old open differential. Place the ring gear on the new Quaife LSD (it’s a tight fit), and re-install the bolts in a cross pattern and pre-torque. For final torqueing, mark the bolt heads with a paint pen, perpendicular to the ring gear. Then, torque all bolts evenly.

    [​IMG]

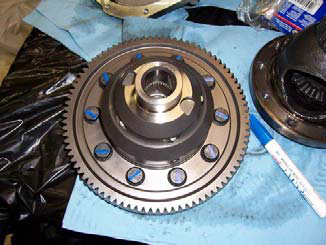

    Figure 16 - Painted bolt heads, showing final location after torqueing.

    Preheat your oven to 350 degrees. No, we’re not baking here, but we are going to use heat to help us get the new differential bearings on our Quaife LSD. While the oven is heating, take your shiny new differential bearings outside, place them in a pan, and proceed to blast the oil off them with Berryman’s B12 Carb Cleaner. Air dry the now clean bearings with the blow gun attachment on your air compressor. You do NOT want to bake your bearings with the shipping oil on them, else you’ll end up with nasty, coked
    up bearings that you will not be able to use.

    When the oven is at 350 and your bearings are nice and clean, place them on a clean cookie sheet and put them in the oven. Set the timer for 20 minutes. Bring the Quaife in and set it on a firm, level surface, grab some leather gloves and get ready for a quick transfer. After the timer goes off, remove ONE bearing from the oven and drop it on to the Quaife, immediately making sure that it seats and allow it to cool for a few minutes. Flip the Quaife over and repeat the process on the other side.

    While the bearings are cooling, prep the mating surfaces of the two transmission housing halves. You can carefully remove the anaerobic sealant using a single-edge razor blade, but be EXTREMELY careful not to nick the mating surfaces. Final cleanup can be done with a bit of B12 sprayed onto a rag. Make sure the surface is clean and dry.

    Once the new differential assembly is cooled completely, flood the new bearings with tranny oil and drop the Quaife into its new home in your gearbox. Follow the directions on the sealant you’ve chosen to rejoin the transmission housing halves – BMW specifies anaerobic sealant, but we have successfully used The Right Stuff from Permatex. Note that most have a very short working time, so once you start the process you need to quickly complete it. Re-install all the housing bolts and tighten them up.

    Installing the Getrag Goodness

    My first step was to pull the shift lug and cables to see how they compared with the ‘S’ versions that I had sitting there for parts, which meant pulling all of the heat shields to access the bottom of the shift lug and expose the shift cables. Inside the car, pull the trim ring off the shift console, pull the shift knob off, and cut the wire tie securing the boot to the shifter and remove the boot. Under the car, remove the 4 Torx bolts holding the shift lug into the tunnel and then extract the shift lug from the car – there are clips on the top, so make sure to free them first.

    My car had the ‘white’ or ‘condition A’ shift lug. Turns out that the shift lug in my car and the ‘S’ version I had ordered had the same manufacturer part number stamped on them. I also had a ‘black’ or ‘condition B’ shift lug sitting there, too – this shift lug is quite different, but should also work fine. In my opinion, you can re-use the shift lug in and cables in your car.

    [​IMG]

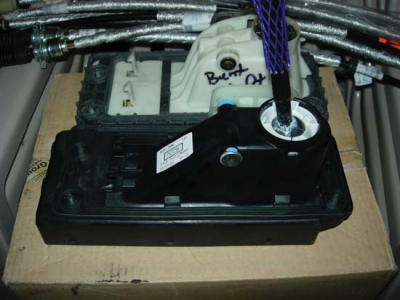

    Figure 17 - Comparing the shift lugs.
    The white one is 'condition A' and the black one is 'condition B'.
    Use the one that matches your build date.

    We compared the cables from the two ‘conditions’ against each other. The lengths are identical and the ends are identical. So, what we thought could be a challenge turned out to be no challenge at all.

    I decided to stick with the same style as the one that came in my car, but I used the newin-box part that I had ordered. I didn’t need to, but decided to use it anyway. I did replace the cables, too, using the cables with the part numbers that ‘matched’ my shift lug. Again, I probably could have used either cable set. Since I used the new shift lug, it was a simple matter to slide the new gaskets on the shift cables, slide the cables into the shift lug housing, and clip them on to the ball joint ends of the shifter mechanism. I reinstalled the shift lug and clipped the cables back into their retainer in the transmission tunnel, leaving the transmission side free.

    The next step is to install the new flywheel. Because of the odd bolt pattern, it only goes on one way. I used red Loctite on the bolts before threading them in and then pre-torqued them by hand. BMW has a special tool for the crank pulley end to hold everything still while you torque the bolts down, but I put one of transmission bolts back in and used a big screwdriver and the teeth on the flywheel. The torque spec is 59 ft/lbs for the Cooper crank, and you need to use a cross pattern. The Bentley Service Manual has a great illustration of the pattern.

    Install the clutch and pressure plate back onto the flywheel, using BMW special tool 21 2 210 to center the clutch disc. The plastic tools that come with the clutch and pressure plate kits are useless, since the MINI crank has no pilot bushing between the engine and the gearbox. This is one spot where the special tool will save a lot of frustration. There is a cross pattern for tightening the pressure plate to the flywheel as well – the torque spec for the OEM bits is 21 ft/lbs, but the spec for the Exedy unit was 23 ft/lbs.

    [​IMG]

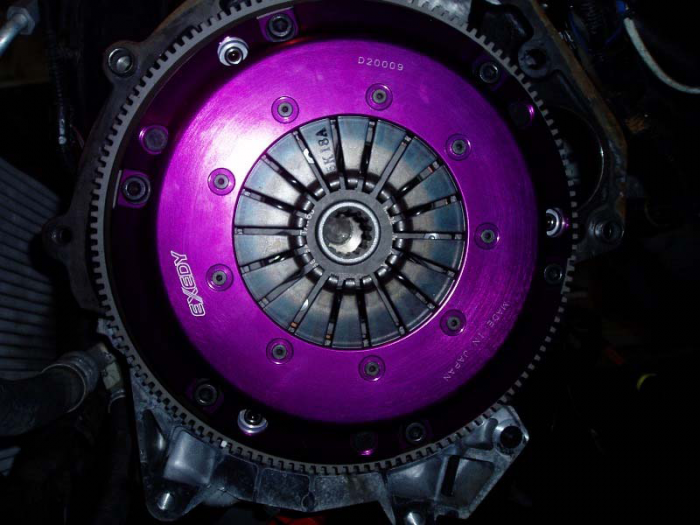

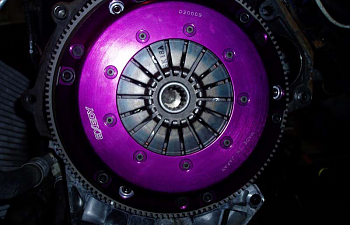

    Figure 18 - Exedy Hyper Single flywheel, clutch and pressure plate installed.
    What a work of art - too bad nobody will ever see it!
    Note that the clutch disc is fairly well centered and ready to accept the input shaft from the new Getrag.

    Now, it’s time to wrestle the new transmission into place. Before you start, slide the new release bearing onto the input shaft of the transmission. Be patient and ensure you have enough help and support – you can always place a jack under the tranny if you need to do so. It is critical to ensure that you match the angle of the transmission and engine for mating – just go slow, wiggle it back and forth, and slide it home. And, yes, be prepared for a whole lot of raunchy innuendo from your shop buddies.

    [​IMG]

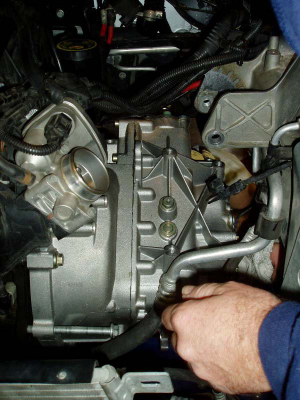

    Figure 19 - Wrestling the new transmission into place. Oh baby!

    Once fully seated, install all the bolts and pre-torque until snug. After all bolts are pretorqued, final torque the transmission to the engine – the spec is 63 ft/lbs.

    [​IMG]
    Figure 20 - Transmission bolted up, bolts torqued, ready to move on!

    Slide the new transmission mount into place and use the new M12 bolts to secure it to the transmission. Torque to 49 ft/lbs. Then, jack the motor up and guide the mount into the arm. Replace the bolt to hang the transmission mount in the support bracket and torque to 50 ft/lbs.

    [​IMG]
    Figure 21 - New transmission mount in place.
    Note the original slave cylinder is still connected up and awaiting modification.

    Now that the new transmission is bolted in and the mount is in place, you no longer need the jack to support the engine. Bolt the new starter (12-41-1-517-328) into place, torquing the bolts to 63 ft/lbs., connect the electrical connections, and re-install the heat shield.

    Grab the Pipe (21-52-6-759-854) and new slave cylinder (21-51-6-777-428) from the OEM parts pile. Note that there is actually a part clipped onto the end of the clutch line – do not unclip the line there, as you will need that to mate up to the pipe (the silver piece in Figure 18 and 20). Unclip the line from the original slave cylinder and quickly clip it into the pipe. Clip the pipe into the new slave cylinder.

    [​IMG]

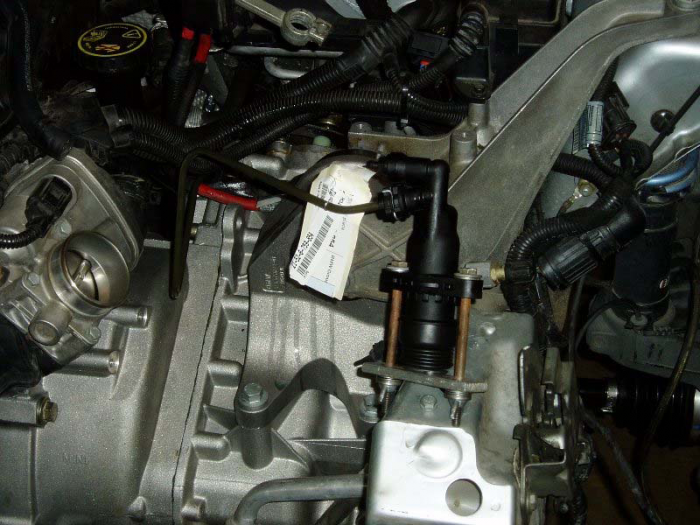

    Figure 22 - New slave cylinder connected.
    Note the ghetto fabulous tool we made to keep the slave cylinder compressed for bleeding.

    Go ahead and bleed the slave cylinder. It will take some time, since there’s bound to be a whole lot of air in the system because of the new pipe and slave cylinder. Remember to keep topping off the brake fluid reservoir as you bleed the cylinder. The best way to do this is manually, pushing the clutch lever in, opening the bleeder valve, and repeating until you see no air bubbles. Note that you may have to manually lift the clutch lever off the floor between bleeds. Once you have ensured there is no more air, remove the compressor tool and put the slave cylinder into its bracket on the lower front of the transmission – it’s very obvious why the pipe is required! Secure the slave cylinder using the M8x30mm bolts that you removed from the original slave cylinder – torque to 18 ft/lbs. Install the pipe bracket to hold everything secure and for a nice, clean install! Check the clutch inside the car – if you installed the Exedy setup, you’ll note a VERY firm pedal with extremely crisp breakover.

    [​IMG]

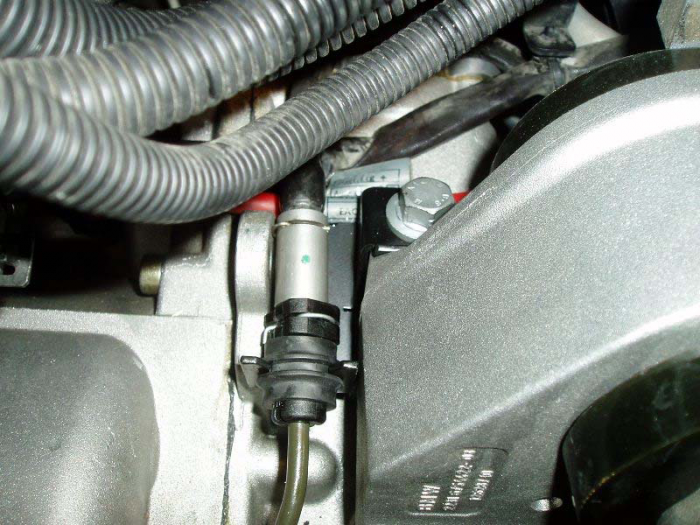

    Figure 23 - Pipe bracket in place, securing the clutch line and pipe.

    Install the shift cable bracket (23-11-7-509-737, Bracket, Bowden cable), reusing the three bolts taken off the old shift cable bracket. Torque to 16 ft/lbs. Clip the cables into the bracket using new clips or by recycling the clips off the old shift cable bracket. Do NOT clip the cable ends onto the ball joints yet – you will want to check the shift cables for clearance around the heater core hoses. We noted that they were awfully close to them and were afraid that they would bind or make shifting harder. Our solution was to move the hose clamps on the heater core hoses so that we could rotate them – rotating them up created enough clearance that we were happy with the result. With this solved, clip the cable ends onto the ball joints. Climb into the car and work through all 6 gears and reverse – you may actually find that you need to depress the clutch. At this point, you can go ahead and re-installed the heat shielding in the tunnel. Likewise, you can re-install the shift boot, trim ring, and install the new 6-speed shift knob.

    [​IMG]

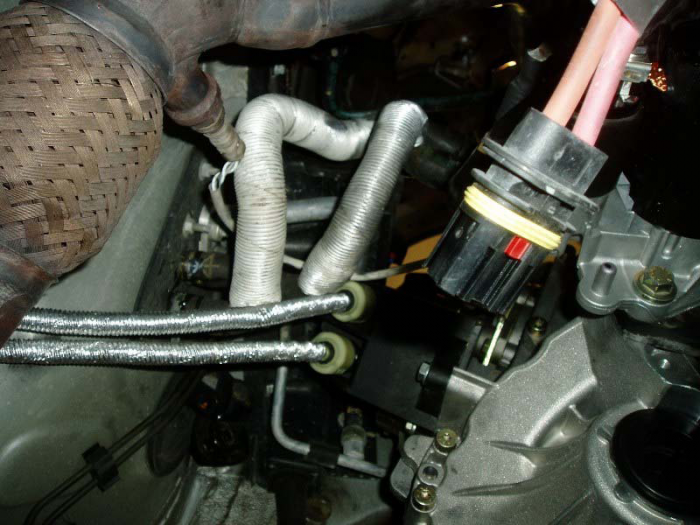

    Figure 24 - Final shift cable routing.

    Next up is installing the new output shafts (31-60-7-514-480 and 31-60-7-514-479). Remember that special BMW tool to protect the seals (24 8 120)? Time to slide those bad boys in place BEFORE trying to install the output shafts, unless you want to lose all the precious fluid you’re about to add. We opted to start with the passenger-side output shaft – slide the splined end of the prop shaft into the differential and replace the three bolts, torquing to 18 ft/lbs. Then, work the hub end into the hub, aligning the splines. Thread the new hex nut on and torque to 134 ft/lbs. Make sure you take a screwdriver or drift and knock the edge in on the hex nut AFTER torquing – we wouldn’t want that axle nut backing off would we? On to the driver’s side, following the same process – note that you need to press in until you hear a little click, which is the lock ring clipping into place. Once it’s in there, you should NOT be able to pull it right back out. Remove the BMW special tools.

    The next step is rigging up the backup light switch – thread the backup light switch out of the transmission. Grab two strands of about 14-16” of wire and strip both ends. Crimp the small stake-on lugs to one end of the wire, and shove them on to the spades IN the backup light switch. If you wish, you can also solder them on – we did. Fill the cavity of the backup light switch with the goo of your choice – we used some of the leftover Right Stuff, which worked great. We then wrapped the new connector with electrical tape – make sure you leave enough wire on the bare ends to be able to work with them. Thread the switch back into its little home on the transmission. Then, cut the old connector off of the backup light harness – keep it close to the connector so you have plenty of wire. Strip the ends of the wire, twist the ends, and then tin them with the soldering iron and some solder. Do the same for the ends of your new, modified backup light switch. Slide a bit of shrink tubing over each wire, and commence to joining the wires – soldering works best, but a crimp connector would also work. The orientation does not matter – we tested the switches. Once soldered, slide the shrink tubing up and shrink it down. We then wrapped the splice with electrical tape. Secure the new harness with a couple of wire ties.

    [​IMG]

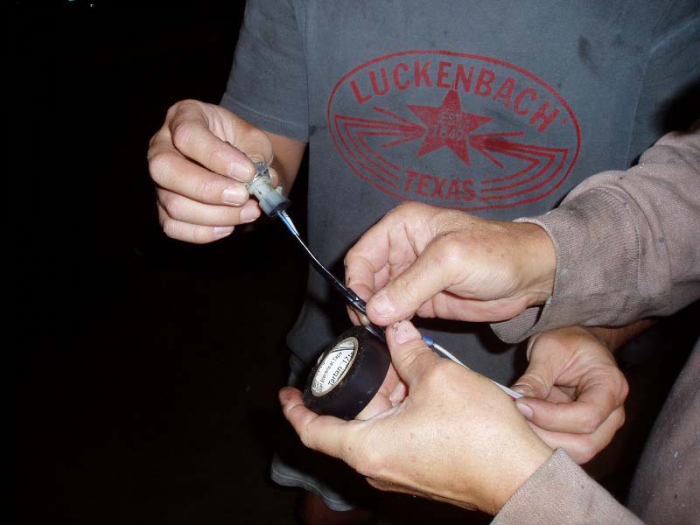

    Figure 25 - Wrapping up the new backup light switch.

    Now that the transmission is in place and the output shafts and switch are in, add fluid to the transmission – your choice. We’ve been running Royal Purple Syncromax, but the OEM fluid and Redline’s products are also fine choices. You’ll need a couple of quarts.

    Slide the jack back under your front subframe and wheel it back into place – slowly start jacking it back up. Remember to guide the power steering reservoir back up through the miniscule space between the header and bulkhead. As soon as the connectors reach, reconnect all the wiring harnesses that you disconnected – power steering pump connections, power steering fan connections. Even though we’ve done this a few times now, we made the mistake of fully installing the subframe first – getting the connectors
    back into place is an exercise in patience once it is fully installed. I blame the beer.

    Once the subframe is located, it’s time to install all the bolts. The torque spec from the front bolts on the ‘horns’ of the subframe is 74 ft/lbs. The torque spec for the rear bolts is 74 ft/lbs. Re-install the two 13mm bolts that hold the lower a-arm balljoint housings into the hub carrier on each side and torque to 41 ft/lbs. Slip the steering tie-rod balljoints back into their homes, install the nuts, and torque to 41 ft/lbs. Re-connect the steering shaft using the wonky bolt – it’s a good time to ensure that the steering wheel has not moved from where it was when the process began. If you get stuck, you can count the revolutions from stop-to-stop and then put it right back in the center BEFORE connecting the steering joint. Re-connect the front swaybar endlinks. Attach the power steering reservoir bracket to the bulkhead and clamp the reservoir back into place using the pinch bolt. Slide the modular front end connectors back onto the subframe and install the bolts, torquing to 74 ft/lbs. Remember to re-attach the ABS sensors, too.

    Grab the radiator and core support and slide it over into place. It’s a bit of a chore to thread it back through all of the lines for the A/C condenser, so it is best achieved with a helper. The service port line is the biggest beating, it seems, so be careful to get it back into the right spot. Slide the core support back onto the studs and re-connect all electrical connections. Re-connect the lower radiator hose.

    Follow this by re-installing all the bolts and nuts from the large, aluminum main bumper beam. Slide the bumper cover near its final location and plug all connectors back into their respective locations. Secure it back in place with the bumper cover hardware. Finish up by installing the undertray and the driver’s side fender liner.

    The final step before the test drive is refilling and burping the coolant system. On the Cooper, this is not the easiest thing in the world and requires a ton of patience. Make sure you mix your coolant with distilled water, since it is not pre-diluted. A clean 2.5 gallon bucket makes it easier. We started by covering the alternator with a cloth and removing the bleed screw on the top radiator hose elbow – then, start filling through the coolant filler neck. Pour VERY slowly. Once it starts weeping from the bleed screw or backs up into the coolant filler neck, stop. Thread the bleed screw back in, but leave it slightly open, and remove the cloth protecting the alternator from overflow. Pour some coolant mix into the overflow tank. Now, it’s time to start the car – make sure the car is in neutral first! Turn the heat to HI and start watching the coolant filler level. As the system circulates, the bleed screw and coolant filler neck will bubble – as needed, add coolant mix. When the thermostat opens, the level may drop, so be prepared to add as necessary. Also, keep a close eye on the temperature gauge in the car. Once you’re convinced the system is thoroughly burped and full, close the bleeder screw and install the cap on the coolant filler neck. Shut the car off.

    Re-install the front wheels and get the car off the jack stands – torque the wheels to spec. Roll the car out into the driveway and it’s time to test the clutch throw. Why? Prior experience with the SPEC setup on the Cooper and with the Midlands transmission told us to do it…

    On the Exedy setup, you could feel that the clutch fully disengage when pushed all the way to the floor and began to re-engage when about 1-1.5” off the firewall. Remember that crisp breakover I mentioned? Pure sweetness! However, on the previous SPEC setup we were running, you could not completely discern the engagement/disengagement points. The way to test the setup is to put the car in neutral, push the clutch all the way in, and start the car. With the clutch pedal fully in, attempt to put the car into first gear and see what happens – the transmission should easily go into gear and the car should not roll at all. IF the car rolls, you’re going to need to adjust the throw of the clutch. With the Exedy setup, the breakover was perfect and there was no adjustment necessary. With the clutch fully depressed, the car sat still and it was easy to work through the gears. And, the engagement was spot on, too.

    When we installed the last Midlands transmission, things did not go so well with this test – the car would NOT go into gear (any gear) with the clutch fully depressed. With the pedal held about 1” off the firewall, it would go into gear fine and the car remained still – if you then pressed the clutch all the way to the firewall, the car would roll forward! This meant that the clutch was actually re-engaging when the clutch pedal was fully depressed – the fingers on the pressure plate were probably curling back around and re-engaging the clutch. Not good! We ended up using a homebrew clutch stop to keep the pedal from traveling all the way to the firewall, which solved the problem.

    Once you are satisfied that everything’s ready to go, it’s time for the best part – the test drive. For us, this moment came about 12:30 AM on Sunday morning. It’s a good idea to take it easy on the clutch for the first 300 miles or so, but you can wind the car out to see what you have accomplished. Keep a close eye on the temperature gauge, though – if you didn’t burp the system well enough, it won’t take long before the car gets into the danger zone. If that happens, pull over and shut down immediately and let the car cool down. Then, try and inch back home – you may have to shut the car down more than once and let it cool back down. Of course, we wouldn’t know anything about this, except that it happened the first time we replaced the Midlands… Hah! If this happens, let the car cool and bleed and burp the system again.

    On the test drive, row through all the gears and keep a sharp ear out for any odd sounds. Have fun!

    If you note that your cruise control does not work after the install, try resetting the ECU using a Peake tool – follow the instructions on resetting the CEL light to clear all codes and then give it a shot. This worked for us, and now the cruise works again! Other things to check if the cruise doesn’t work are the brake and clutch switches – ensure they are properly adjusted and functioning, and then try resetting the codes (if you have them). The codes for the clutch switch malfunction and cruise/brake switch circuit malfunctions are P0704 and P0571, respectively.

    Driving Impressions
    My initial impressions are that the late model Getrag-6 gearbox is a superb match for the Cooper – especially our Cooper, which is making gobs more power than a stocker. First and second gears are a hoot, but third and fourth are simply the most fun. In 6th gear, cruising at about 70 mph is right around 3K RPM’s.

    With my car’s powerband, acceleration is smooth and brisk all the way from idle to redline… My car really shines from 3.5K-6.9K, where the Shrick cam and our head work really pay off in buckets of hp and torque – buckets being a relative term, but still, it is a real hoot to drive.

    After driving with and without an LSD, the car is even more transformed – I highly recommend taking the time and absorbing the extra expense to install the Quaife unit. Where the inside wheel used to spin, the car now tracks better through the corner and literally RIPS through it. One odd thing that you might find yourself getting used to is how the front will ‘walk’ sideways at times, but this is eminently controllable – it won’t wash out anymore, but will skitter to one side (and more so in the wet if hustling around corners with the DSC off).

    I also would not hesitate to recommend the Exedy Hyper Single unit – it’s simply superb in every aspect and absolutely KILLS the SPEC Stage III and a lightweight flywheel in comparison. Now I know why many, many people say Exedy is the ONLY way to go. Yes, it’s pricey, but compare the total cost to a good lightweight flywheel and performance clutch setup! Now, add in the stellar performance and there is only ONE way to go…
